- Availability: 1
- Brand: Euro-Clear
- Model: DFA-34M

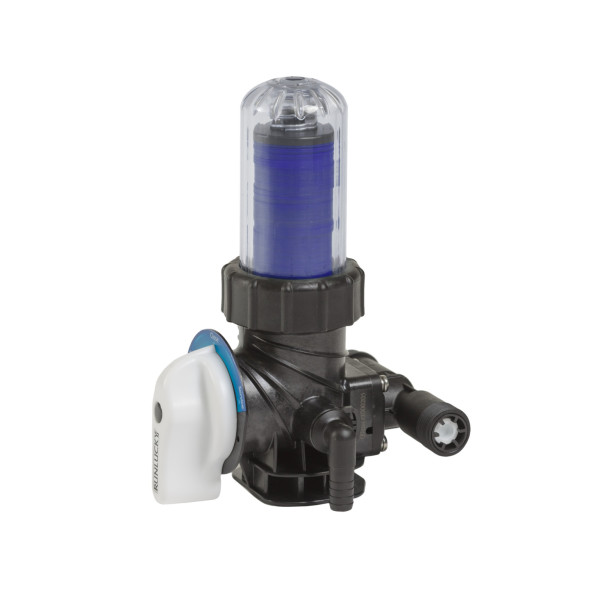

The filters with the most advanced cleaning efficiency are filter disc water filters.
When backwashing a water filter made of filter discs, on the one hand, the distance between the filter discs increases, i.e. the filter discs pressed together by spring force move away from each other, and on the other hand, the flowing water rotates the discs.
The discs rotating at different speeds hit each other and clean each other extremely effectively.
Effective backwashing can be easily performed by turning the hand lever.
The filter made of filter discs provides 50 micron filtration and, thanks to its large filtering surface, the pressure drop on it will be extremely small.
Additional advantages:
- The built-in check valve prevents the liquid from flowing back.
- The shut-off function can be activated by turning the hand lever, so there is no need to install ball valves before and after the filter.
- The threaded connection can be rotated 360 degrees, so it can be installed in different positions
Temperature: 5-50°C
Pressure: 6 bar
Flow: 1.5 m3/h
Filtration fineness: 50 μm
